7.3M Ku Band RX-only Antenna ——In the Congo

2017-07-05


刚果金7.3mKu接收天线工程方案1

Genera Background

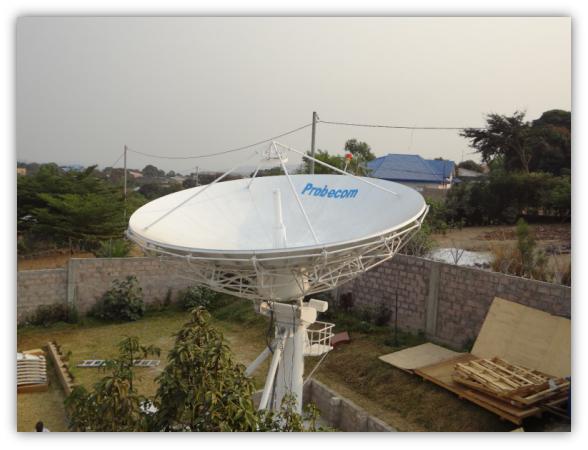

Probecom 7.3 M antenna adopts all aluminum re-enforced reflectors, consisting of precisely formed panels with matched radials and hub assemblies, ensure the ease of installation. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy for Ku-Band Rx operations.

7.3-meter earth station antenna, which uses a shaped parabolic reflector, provides high gain and exceptional pattern characteristics as well as low VSWR. Its electric performance meets the FCC regulation 25.209, IESS (Intelsat), or ITU-RS Recommendation 580 sidelobe specification (domestic and international standards). The main reflector surface is comprised of 16 individual adjustable aluminum panels. The panels of the main reflector are comprised of aluminum sheets and ribs which are stretch-formed, and are riveted on the special mould. The 7.3m antenna structure consists of the pedestal, reflector, sub reflector and the feed system, as shown in Fig.

Highlighted features

*Meets CCIR 580 and INTELSAT Requirement

*CP/LP switchable feed

*High RF performance

*High Gain,Low VSWR

*Galvanized stainless steel hardware

* Antenna reflector be pre-assembly in works, special designed taper-pin easy installation and ensure on site assembly accuracy, no theodolite required


Electrical Specification

Type

K73T

Operating Frequency, /GHz

Ku-Band Receive

10.95~12.75

Gain, Mid-band/dB

56.8

Polarization

Linear

XPD/dB

35

-3dB beam Width,

0.23°

Isolation, Rx to Rx,dB

30

Sidelobes

-14dBCCIR 580-4

VSWR

1.3

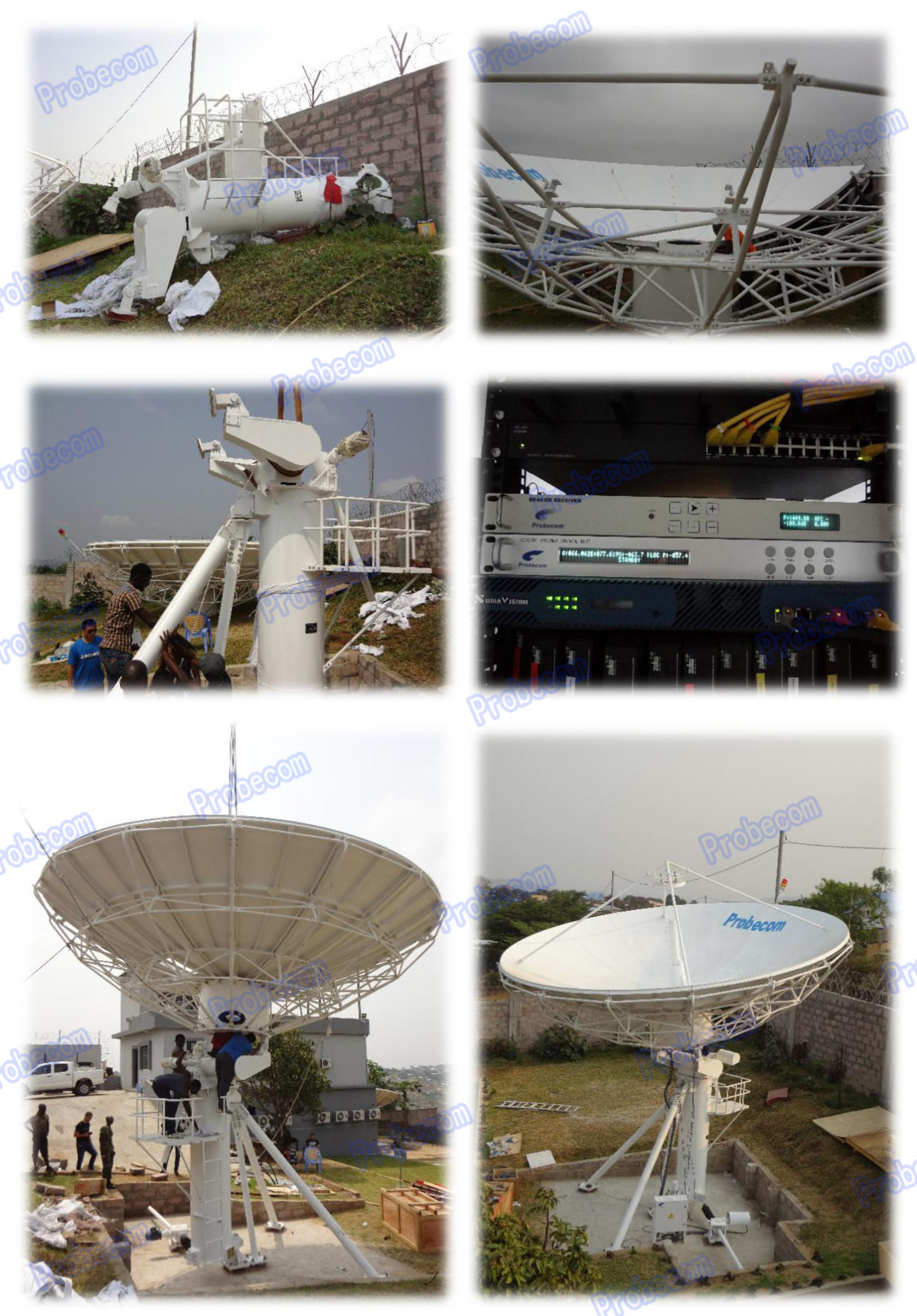

Installation on the site

1


Antenna Accessory

-Motorization Kits

-Limit Switches

-ODU Support Kits

-Factory Feed System Testing and Documentation

-Ocean /Air Transport Packing

-Foundation Kit

-Lightening Rod Kit

-Grounding Kit

-Cable-Mounting Kit

Conclusion

Probecom 7.3 Meter ring focus antenna providing Rx 2-port feed in switchable linear. 7.3m Ku band antenna only for linear polarization, it can deliver exceptionally high performance for receive applications with auto–tracking control system. It is widely and ideally used for Broadcasters, Service Providers, GSM operator and Satellite operator in the Congo.
