AC3000EL Antenna Control System

AC3000EL-ADU

Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

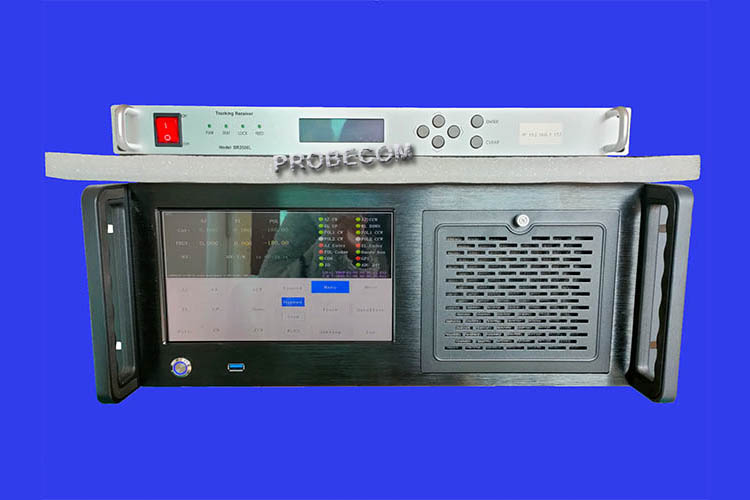

The Probecom Model AC3000EL Antenna Control Unit enables satellite earth station antennas to accurately track geostationary.

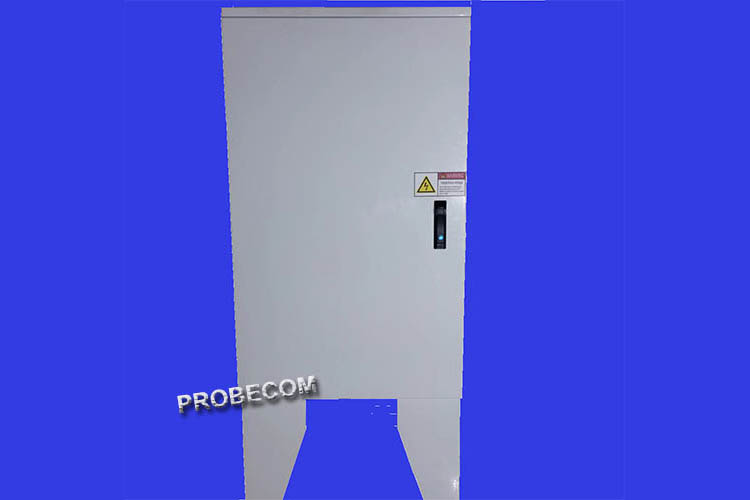

AC3000EL antenna control system is based on windows 7 operation system and IPC structure. ACU and ADU communication via

fiber up to 400M.    The system has high reliability, and maximum flexible system configuration. Easy operation and human interface.

This system using Optical electric resolver to ensure the drive and tracking accuracy.The system is remotely controllable over Ethernet

via TCP/IP

Highlight:


windows 7 Operation system

IPC structure

Two speed driver(high for slew ,Low for tracking)

7.0-inchTFT True Color LCD touch screen

12-bit Optical electric resolver( 16-bit Optical electric resolver optional)

ACU and ADU communication via fiber

0.005°display for AZ and EL

Emergency Stop

Easy upgrade the software

highly scalability for ACU and ADU

Remote control over Ethernet

Software and hardware travel limit switches ensure the safety operation.

Integrated beacon receiver module or DVB receiver module Optional

◆Two Axis Control for Az and EI .Polarization optional.

Modes of Operation

STANDBY

MANUAL

STEPTRACK

PROGRAM TRACKING (option)

Tracking Accuracy

Better than 10% receive 3dB beamwidth RMS in Step Tracking

Program tracking: 0.02 °

Controls / Interfaces

Front panel Local control

Remote: Ethernet,

Receiver Interface: RS-232 or (0-10v) analog voltage optional

Alarm: Summary output

Environmental

Temperature: -10°C ~ + 50°C;

Optional: - 40 ° ~ 50 ° C

Humidity: 95% non-condensing

Electrical

ACU: 220(±10﹪)V,50(±5﹪)Hz,100W typical

ADU: 380(±10﹪)V50(±5﹪)Hz

Power capacity10KW

Mechanical

ACU:Height: 4 Rack Units Width: 19”

ADU:Height: 1550mm Width: 720mm Depth: 400mm
