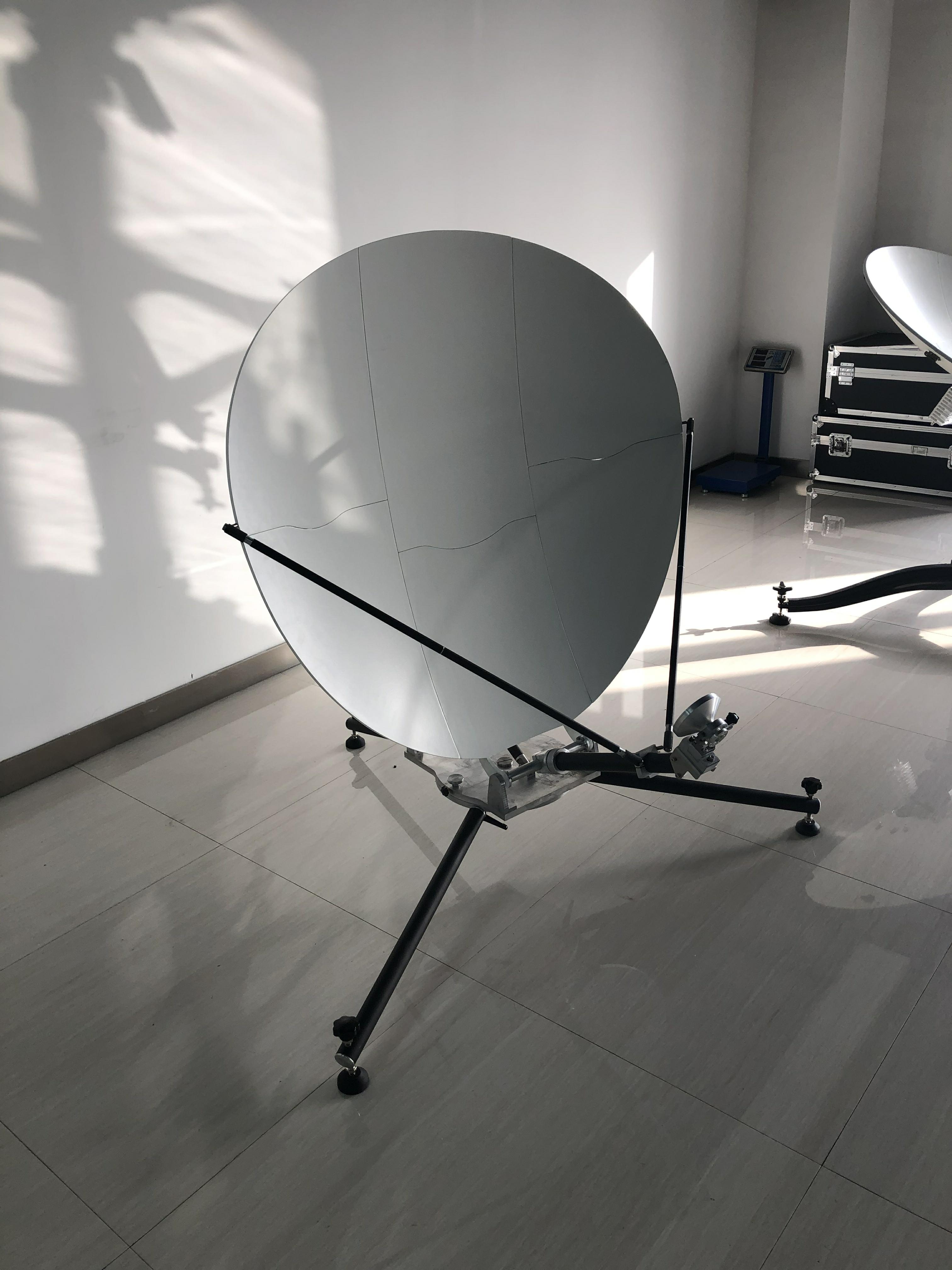

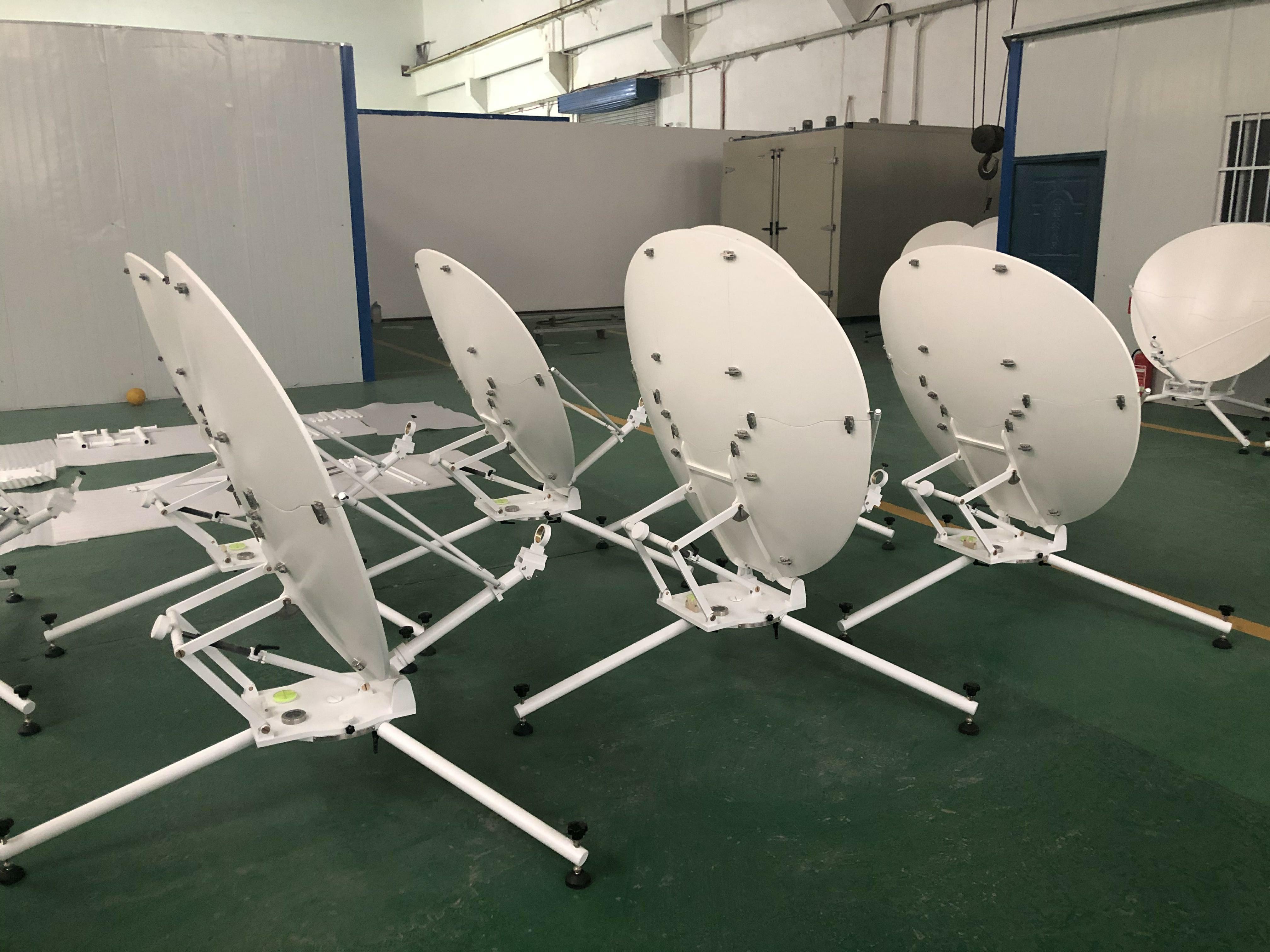

1.2m Ku Band Manual Flyaway Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

General Description

The probecom 1.2m flyaway manual antenna is specially designed for highly portable antenna by adopting carbon fiber material with light weight and can be assembled in less than 3 minutes by two person .

It can provide users exceptional performance in high gain and low side lobe


Highlight Features

Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna in the normal operation under harsh environment in greatest degree.

Compact structure, Lightweight, portable,rapid deployment, high performance, a person can install within 3 minutes, available in airline baggage.

The latest design of the Ku-band satellite antenna, being compact and robust, cost-effective can be used in the fast and reliable satellite communications.

Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content


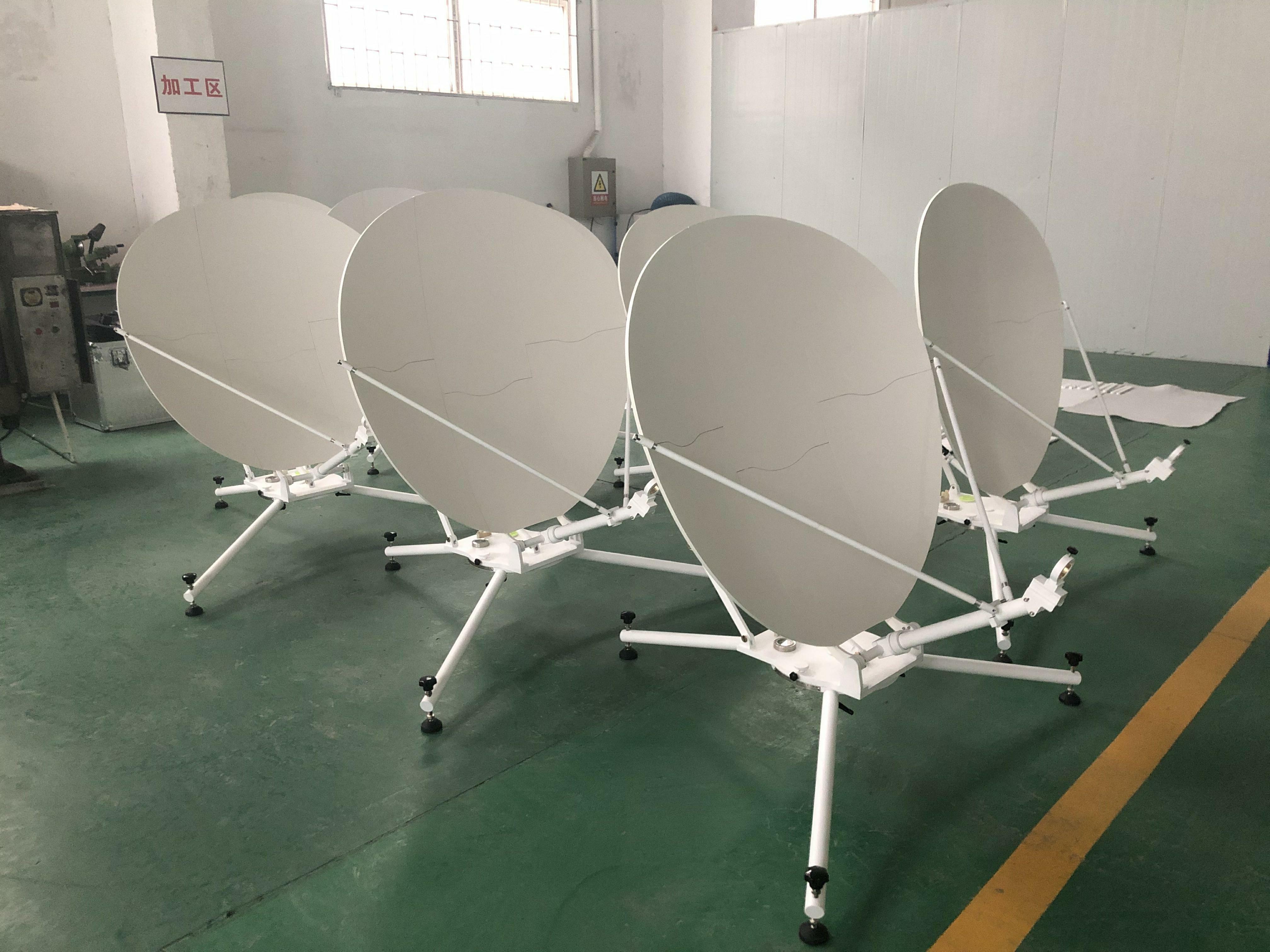

Components

Single Offset Antenna

Azimuth & elevation turntable

Portable case

Compass& leveling



Electrical Specification



Type

CFM120EC-S

CFM120EK-S



Frequency(GHz)

Ex C band

Ex ku band



Receive

Transmit

Receive

Transmit



3.4-4.2

5.85-6.725

10.7~12.75

13.75~14.5



Typical Gain(dBi)

31.8@4GHz

35.3@6GHz

41.6@12GHz

43@14GHz



Polarization

Linear

Linear



VSWR

1.30:1

1.30:1

1.30:1

1.30:1



Beam width: -3dB

4.22°

2.81°

1.36°

1.15°



Power Handing Capability



1KW



200W



Feed Interface

CPR-229F

CPR-137F

WR75

WR75



Feed Insertion Loss(dB)

0.3dB

0.2dB

0.4dB

0.2dB



Tx/Rx Isolation

80dB

80dB



Cross Polarization Isolation

≥30dB

≥30dB



Side lobe

At least 90% of the side-lobe peaks does not exceed

32-25logθ(100λ/D<θ≤20°)



MECHANICAL SPECIFICATIONS



Weight

23kg

20kg

material

Carbon Fiber



Mounting time

3 minutes Two Persons



Drive mode

                                              Manual Drive



Azimuth Travel

360° Fine adjust



Elevation travel

10°85°



Polarization Travel Rate

±90°



Surface Accuracy (R.M.S)

0.3mm



Ambient Temperature

-30°+60°



Relative Humidity

0%~100
