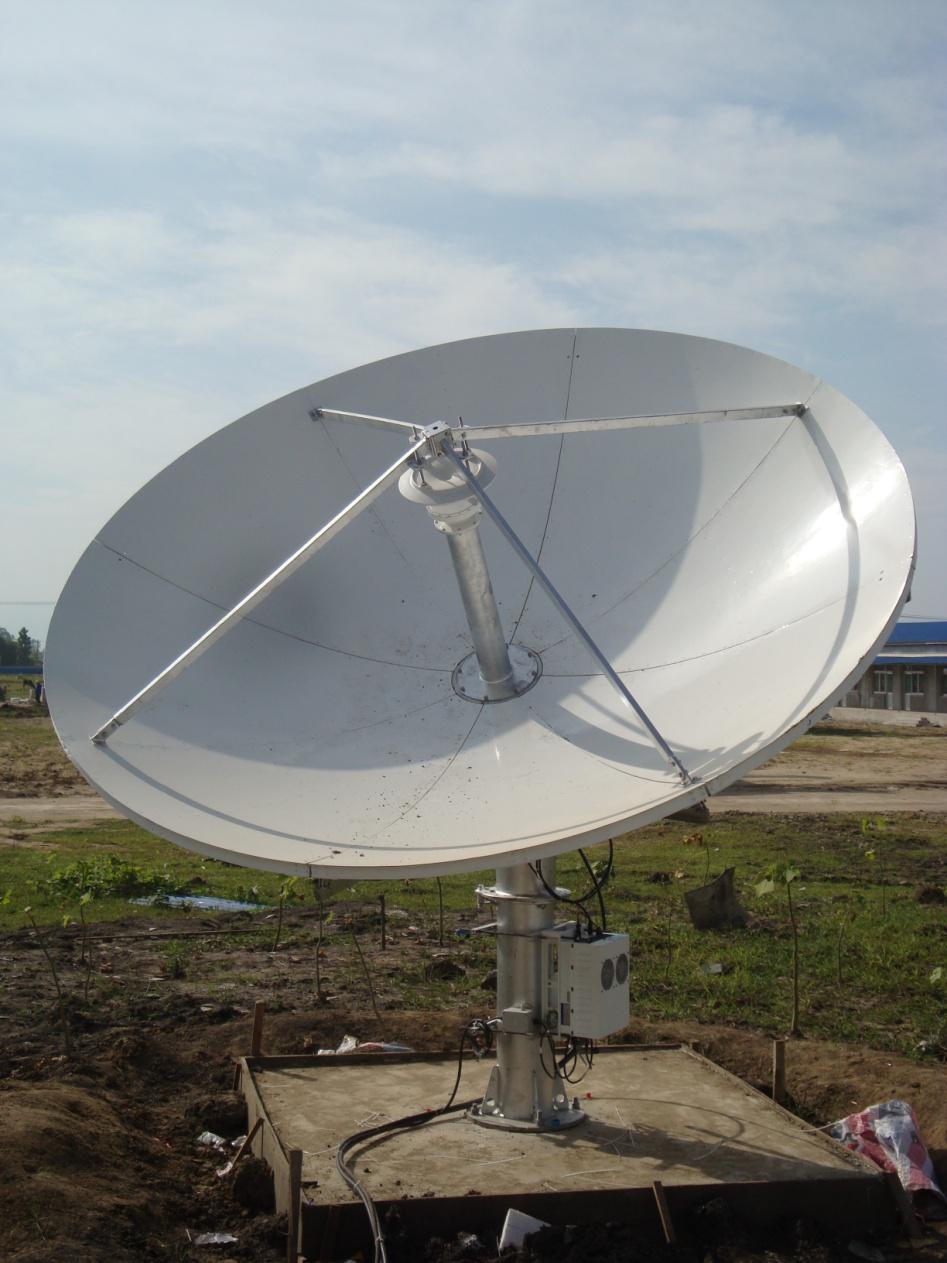

3.0m X Band Earth Station Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

1. General Description


Probecom 3.0M Ring-focus antenna providing Tx/Rx 2-port feed linear & circular polarization for C-band, 3.0m Ku band antenna only for linear polarization, can deliver exceptionally high performance for transmit/receive applications.


Probecom 3.0 M antenna RF specification can adhere to FCC Regulation25.209,IESS and ITU-RS.580-5,INMARSAT, ASIASAT,INTELSAT, APT and CHINASAT, etc.


Probecom 3.0M antenna reflector incorporates stretch-formed doubly contoured panels with matched radials and hub for ease of field alignment. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy required for Ku-band operation.


2. Highlighted Features

*Meets CCIR 580 and INTELSAT Requirements

*CP/LP switchable feed

*High RF performance

*Galvanized Stainless steel hardware

*Different frequency ranges from many feed configurations



3. Options

*L,S,X bands and multi-bands

*800MHz bandwidth is available

*Feed blower or deicing with automatic controls

*Two or four Tx/Rx port in linear polarized feeds



4. Antenna Accessory

*Motorization Kits

*Limit Switches

*ODU Support Kits

*Factory Feed System Testing and Documentation

*Ocean /Air Transport Packing

*Foundation Kit

*Lightening Rod Kit

*Grounding Kit Cable-Mounting Kit

*Anti-icing and Deicing

5. Electrical, Mechanical, Enviromental Specification

Type

SX030TCP2X

Operating Frequency, GHz

X- Band

Receive

Transmit

7.25~7.75

7.9~8.4

Gain, Mid-band, dBi

45.22

45.94

Polarization

Circular

Axial Ratio  2-Port Feed

1.15 : 1

1.1 : 1

VSWR

1.30 : 1

1.30 : 1

Antenna Noise Temperature

10° Elevation

30° Elevation

50° Elevation



43K

36K

33K



-3 dB Beam Width, Mid-band

0.90°

0.86°

Typical G/TEL>10°2-Port

26dB/K (30° LNA)



Tx. Power Capability, KW



1

Feed Interface

WR-112

WR-112

Feed Insertion Loss, dB

0.5

0.5

Isolation, Rx to Tx, dB

 Isolation, Tx to Rx, dB

80

80

First Side lobe

90% Peaks under Following Envelop

-14

29-25logθ(1°≤θ20°)

Mechanical Specification

Antenna Diameter

3.0m

Antenna Type

Ring Focus

Surface Accuracy(RMS)

≤0.5mm



Antenna Pointing Range

Azimuth

Elevation

Polarization

±85°

0°~90°(Continuous)

±90°(Continuous)

Drive Mode

Motorized / Manual

Motor Drive System

Azimuth Travel Rate

Elevation Travel Rate

0.11°/S(0.06°/S)

0.15°/S(0.08°/S)

Environmental Specification

Operational Wind

72km/h gusting to 97km/h

Survival Wind

200km/h

Temperature

-40°~+60°

Relative Humidity

100%

Solar Radiation

1135Kcal/h/m²

Seismic(Survival)

0.3g(H), 0.15g(V)

Ice Loading

13mm Operational; 25mm Survival
