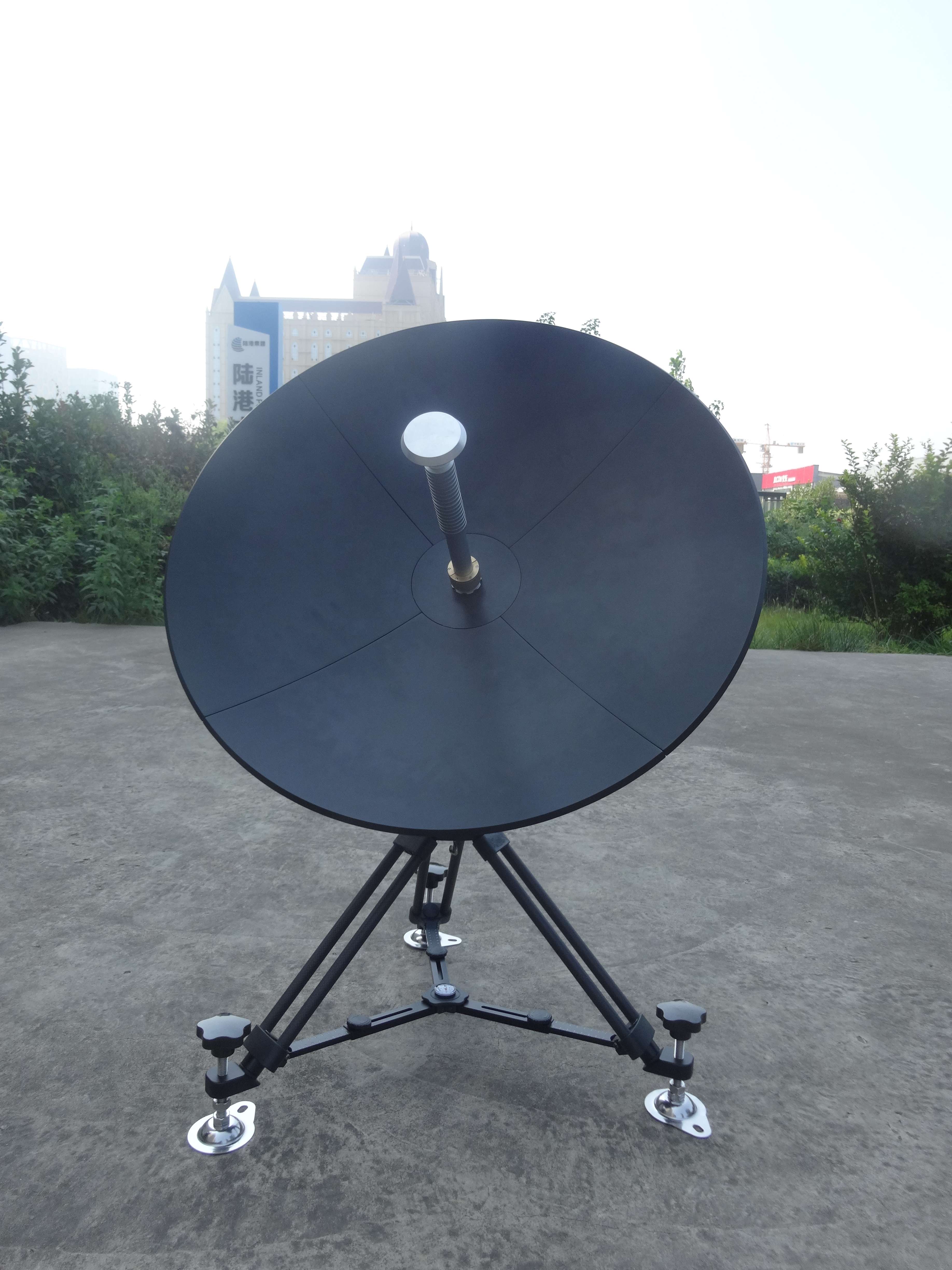

0.75m Ku/Ka Band Manual Flyaway


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS
暂无内容
1

Electrical Specification

Type

Ka-Band

Ku-Band

Operating Frequency (GHz)

RX

TX

RX

TX

19.2-21.2

29.0-31.0

10.7-12.75

13.75-14.5

Gain, mid-band (dBi)

41.8@20.2GHz

45.2@30.0GHz

37.2@12.0GHz

38.6@14.0GHz

Polarization

RHCP/LHCP

Linear V/H Adjustable

Axis Ratio

1.2dB

1.5dB

/

VSWR

1.4:1

1.4:1

1.5:1

1.3:1

-3 dB Beam Width, Mid-band

1.33°

0.90°

2.25°

1.93°

Tx to RX isolation

85dB

80dB

Cross-polarization isolation

/

35dB

Sidelobe

CCIR 580-5

CCIR 580-5

Tx. Power Capability

/

100W

/

100W

Feed Interface

WR42

WR28

WR75

WR75

Feed Insertion Loss

0.6dB

0.5dB

0.5dB

0.4dB

Mechanical Specifications

Antenna Type

Splashing Plate

Main Reflector

Carbon Fiber

Feed

Quick feed swap

Operating Wind

Stable wind≤50km/h; gusting≤65km/h (need increase weight)

Operating Temperature

-40°C+60°C

Drive Mode

Manual

Azimuth Travel

360°

Elevation Travel

90°

Surface Accuracy (R.M.S)

0.2mm

Relative Humidity

0%~100
