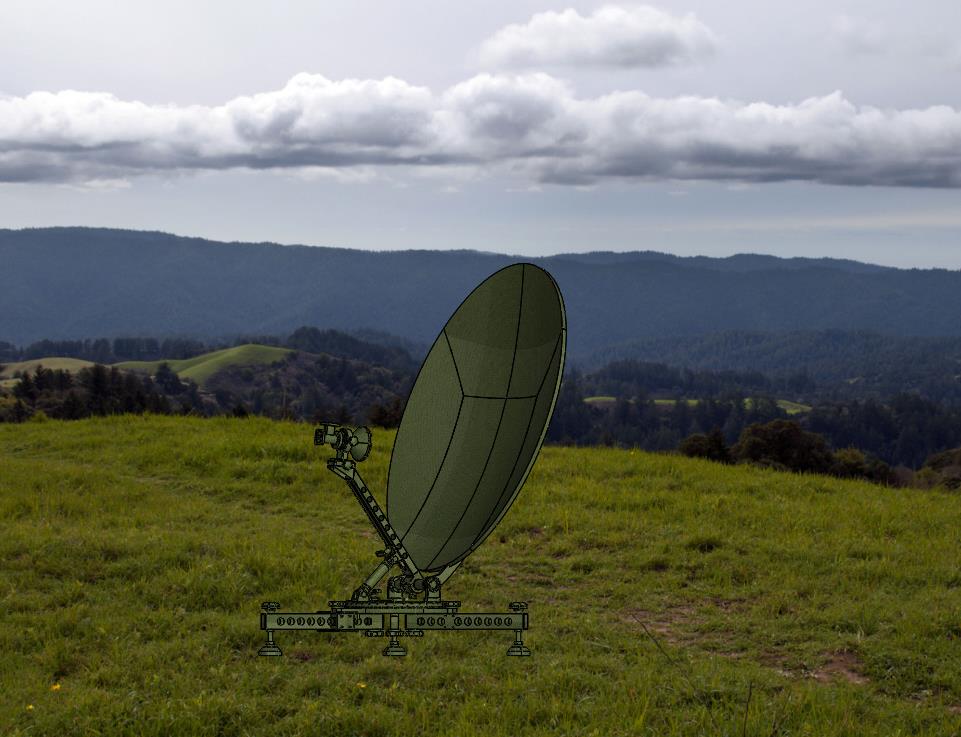

0.75m Ku Band Manual Flyaway


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS
暂无内容
1

Electrical Specification

Type

CFM75EK

Frequency(GHz)

Extended ku band



Receive

Transmit



10.7~12.75

13.75~14.5

Typical Gain(dBi)

37.6@12GHz

38.9@14GHz

Polarization

Linear

VSWR

1.25:1

1.25:1

Beam width: -3dB

2.4°

2.0°

Power Handing Capability



200W

Feed Interface

WR75

WR75

Feed Insertion Loss(dB)

0.4dB

0.2dB

Tx/Rx Isolation

80dB

Cross Polarization Isolation

≥30dB

Side lobe

At least 90% of the side-lobe peaks does not exceed:

32-25logθ(100λ/D<θ≤20°)

MECHANICAL SPECIFICATIONS

Weight

9.6kg

material

Carbon Fiber

Mounting time

3 minutes (Two Persons)

Drive mode

Manual Drive

Azimuth Travel

±60°Vernier adjustment

Elevation travel

0°~90°

Polarization Travel Rate

±90°

Surface Accuracy (R.M.S)

0.3mm

Ambient Temperature

-30°~+60°

Relative Humidity

0%~100%
