1.0m Ku Band Manual Flyaway
Online consulting:
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS

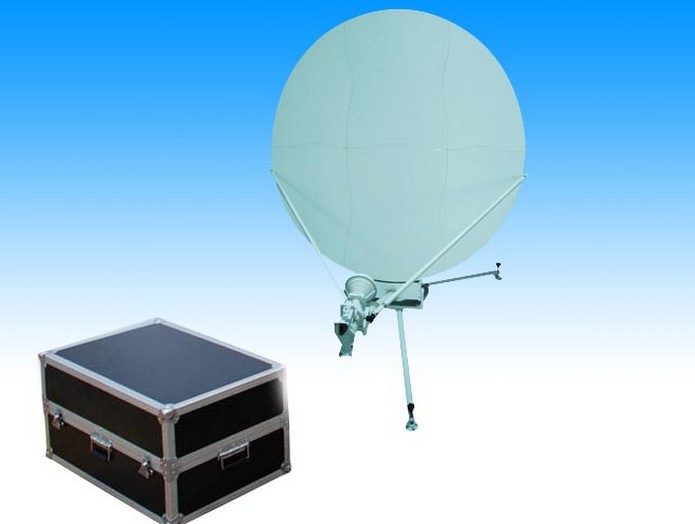

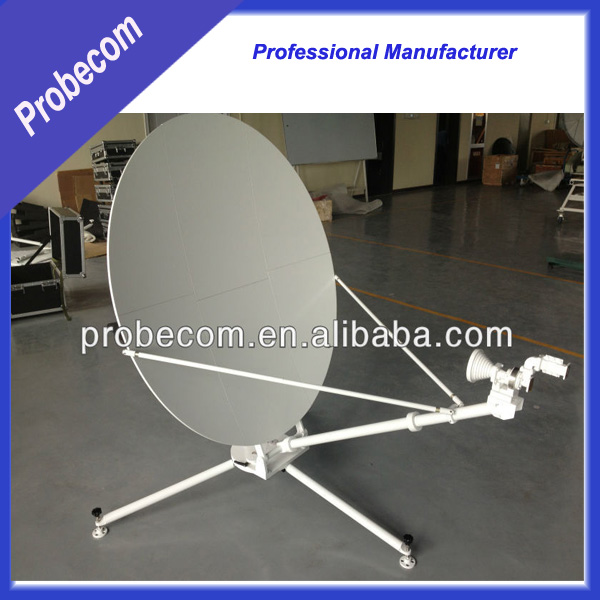

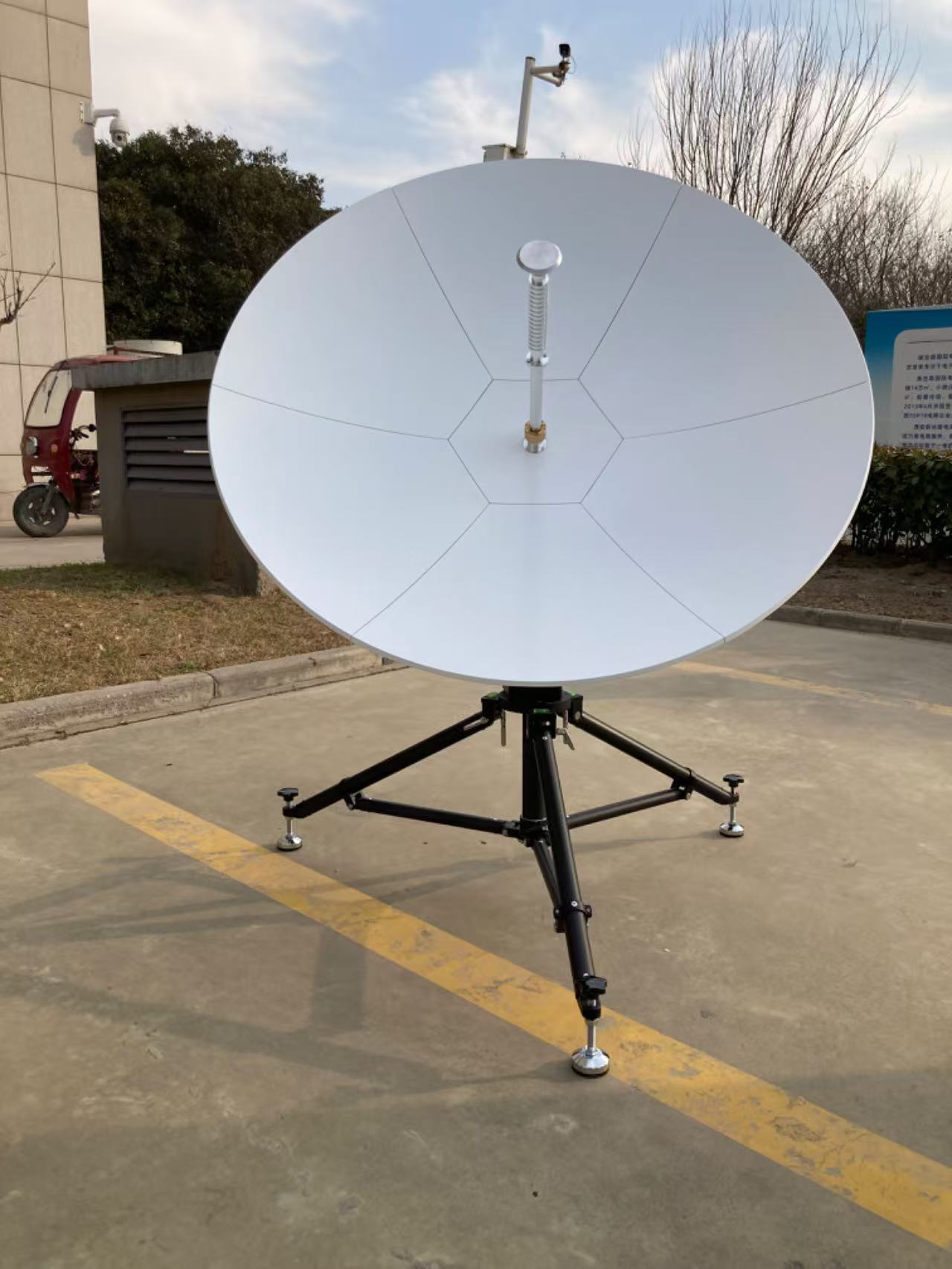

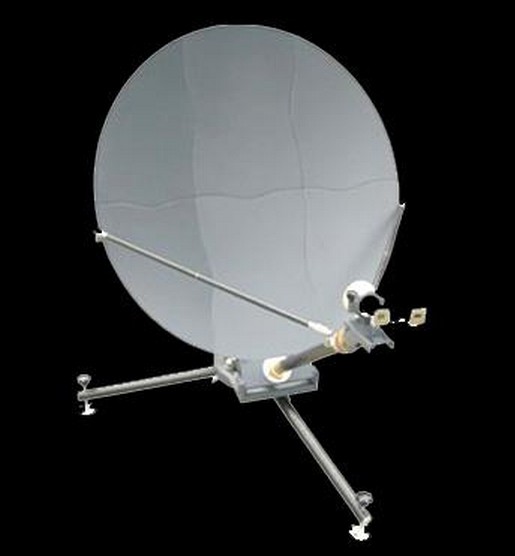

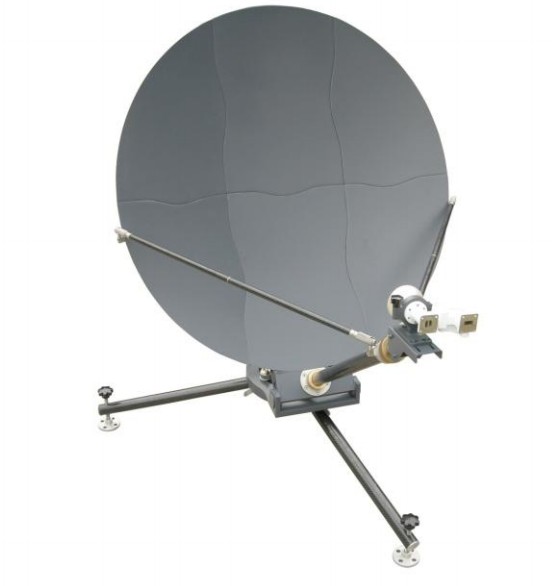

The probecom 1.0m flyaway manual antenna is specially designed for highly portable antenna by adopting carbon fiber material with light weight and can be assembled in less than 3 minutes by two person (quick deploy antenna).
It can provide users exceptional performance in high gain and low side lobe (flyaway antenna system)
Highlight Features：
l Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other
characteristics, it ensured the antenna in the normal operation under harsh
environment in greatest degree.
l Compact structure, Lightweight,
portable, rapid deployment, high performance, a person can install and point to
satellite within 5 minutes, available in airline baggage.
l Quick feed swap and simplified polarization selection
l The latest design of the EHF-band satellite antenna,
being compact and robust, cost-effective can be used in the fast and reliable
satellite communications.
|
Electrical Specification |
||||
|
Type |
Ka-Band |
Ku-Band |
||
|
Operating Frequency (GHz) |
RX |
TX |
RX |
TX |
|
19.2-21.2 |
29.0-31.0 |
10.7-12.75 |
13.75-14.5 |
|
|
Gain, mid-band (dBi) |
43.9@20.2GHz |
47.3@30.0GHz |
39.6@12.0GHz |
40.9@14.0GHz |
|
Polarization |
RHCP/LHCP |
Linear V/H Adjustable |
||
|
Axis Ratio |
1.5dB |
1.2dB |
/ |
|
|
VSWR |
1.3:1 |
1.4:1 |
1.3:1 |
|
|
-3 dB Beam Width, Mid-band |
1.0° |
0.70° |
1.71° |
1.47° |
|
85dB |
80dB |
|||
|
Cross-polarization isolation |
/ |
35dB |
||
|
CCIR 580-5 |
||||
|
Tx. Power Capability |
/ |
100W |
/ |
100W |
|
Feed Interface |
WR42 |
WR28 |
WR75 |
WR75 |
|
Feed Insertion Loss |
0.5dB |
0.4dB |
0.4dB |
0.3dB |
|
Mechanical Specifications |
||||
|
Antenna Type |
Splashing Plate |
|||
|
Main Reflector |
Carbon Fiber |
|||
|
Feed |
Quick feed swap |
|||
|
Weight |
≤17Kg (Ka band) ≤18Kg (Ku band) |
|||
|
Operating Wind |
Stable wind≤50km/h; gusting≤65km/h (need increase weight) |
|||
|
Operating Temperature |
-40°C～+60°C |
|||
|
Drive Mode |
Manual |
|||
|
Azimuth Travel |
360° |
|||
|
Elevation Travel |
0°～90° |
|||
|
Surface Accuracy (R.M.S) |
0.2mm |
|||
|
Relative Humidity |
0％～100％ |
|||
