Customer C Band Diplexer (C/Ku)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Probecom Technologies' Torrance Facility designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 Ghz for the commercial, military .
A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.

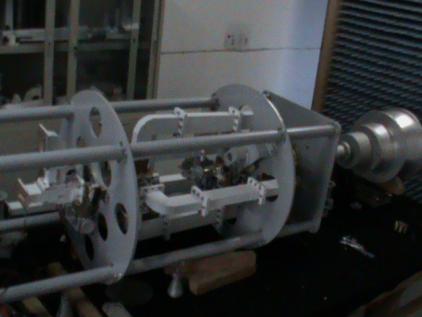

C/Ku Dual Band Network

Operating Frequency, GHz

C

Ku

3.4-4.2GHz

10.95-12.75GHz

Polarization



Dual Linear/Dual Circular

(switchable)

Dual Linear

VSWR

1.30:1

1.30:1

Axial Ratio

(Circular-Polarized)

1.06:1



Interface

WR229

WR75

Insertion Loss, dB

≤0.3dB

≤0.5dB

Isolation

L/R-HCP=20dB

H/V-POL=30dB

XPD(linear)

≥35dB

Standard and Option



Pressurization

No or Customized

Material

Copper Electroforming or Customized

Exterior

White paint or Customized
