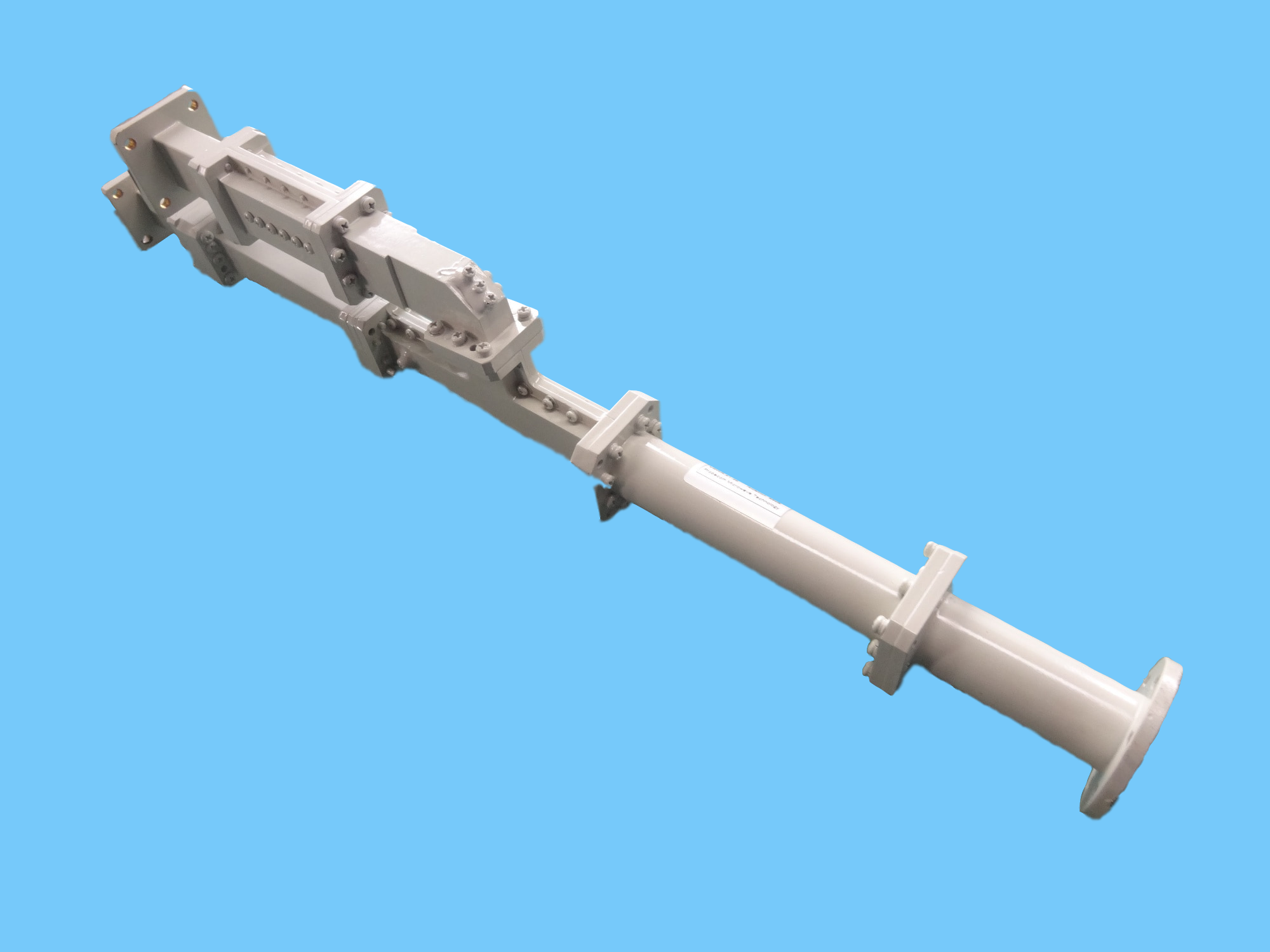

DBS Band Diplexer (Linear POL)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Probecom Technologies' Torrance Facility designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military.

A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.

TWO-PORT

Operating Frequency, GHz

TX

RX

17.3-18.4

10.7-12.75

Polarization

Linear

Linear

VSWR

1.25:1

1.30:1

Cross POL, dB

35

35

Insertion Loss, dB

≤0.3dB

≤0.4dB

Interface

WR62

WR75

Power Handing, KW

1



Isolation, Tx/Rx, dB

≥80dB

Standard and Option



Pressurization

No or Customized

Material

Aluminum or Customized

Exterior

White paint or Customized
