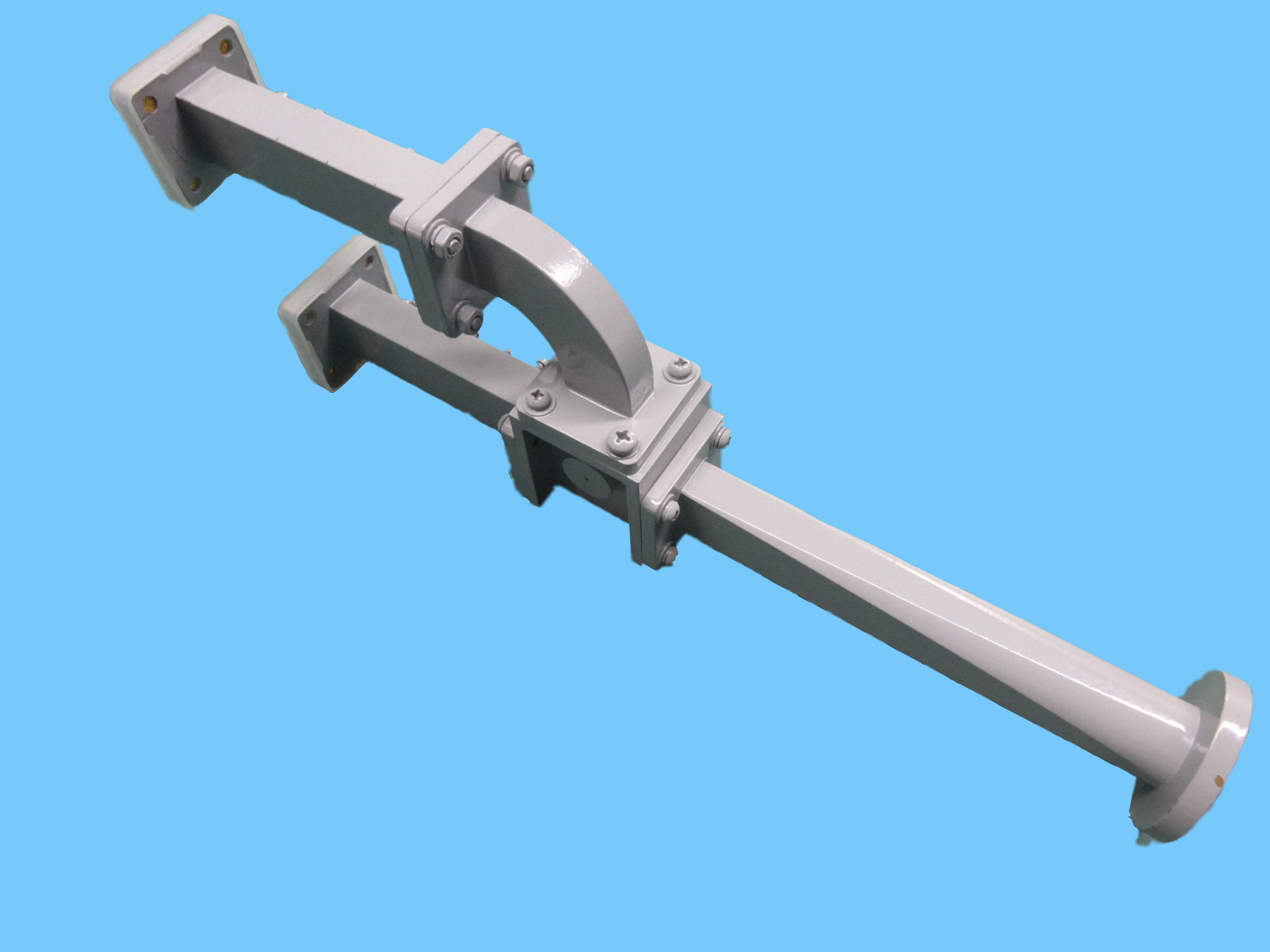

Lower Ku Band 2 Ports Diplexer (Linear CO-POL)
Online consulting:
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS
Probecom Technologies' Torrance Facility designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military.
A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.
|
|
TWO-PORT |
|||
|
Operating Frequency, GHz |
|
TX |
RX |
|
|
Band 1 |
12.905-13.250GHz |
10.75-10.95GHz |
||
|
Band 2 |
12.905-13.250GHz |
11.2-11.45GHz |
||
|
Polarization |
Linear |
Linear |
||
|
VSWR |
1.25:1 |
1.25:1 |
||
|
CrossPol, dB |
35 |
35 |
||
|
Insertion Loss, dB |
≤0.4dB |
≤0.4dB |
||
|
Interface |
WR75 |
WR75 |
||
|
Power Handing, KW |
1 |
|
||
|
Isolation, Tx/Rx, dB |
≥55dB |
|||
|
Standard and Option |
|
|||
|
Pressurization |
No or Customized |
|||
|
Material |
Copper or Customized |
|||
|
Exterior |
White paint or Customized |
|||
