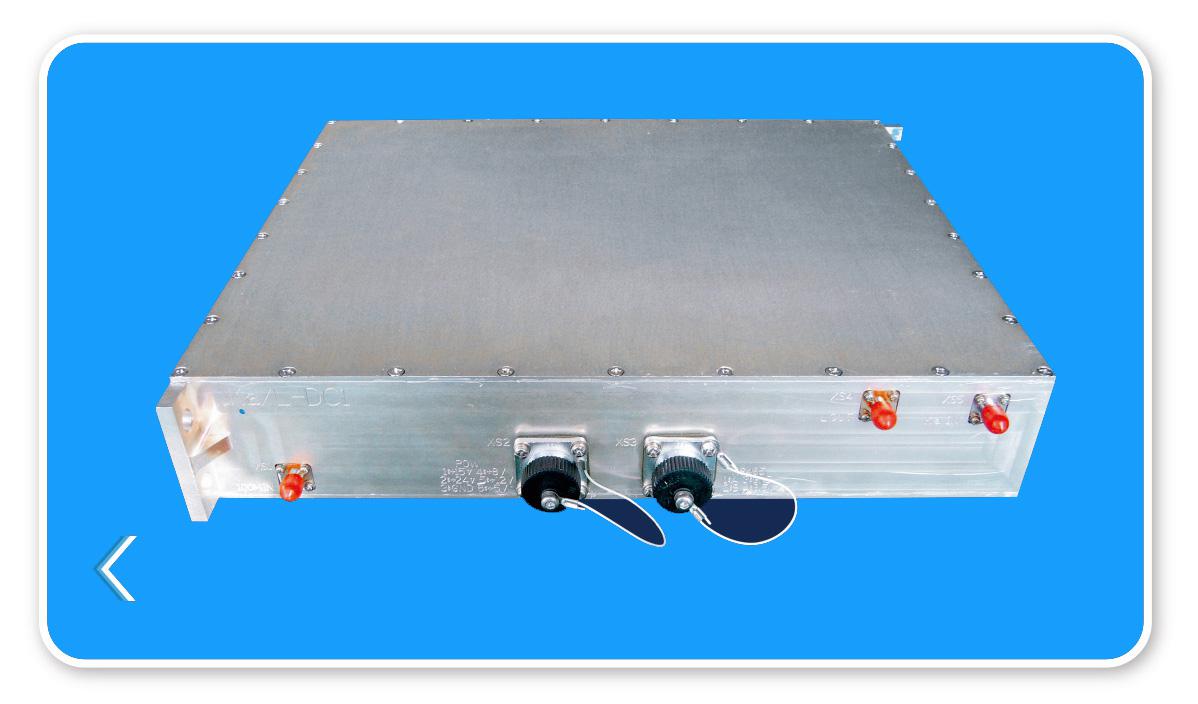

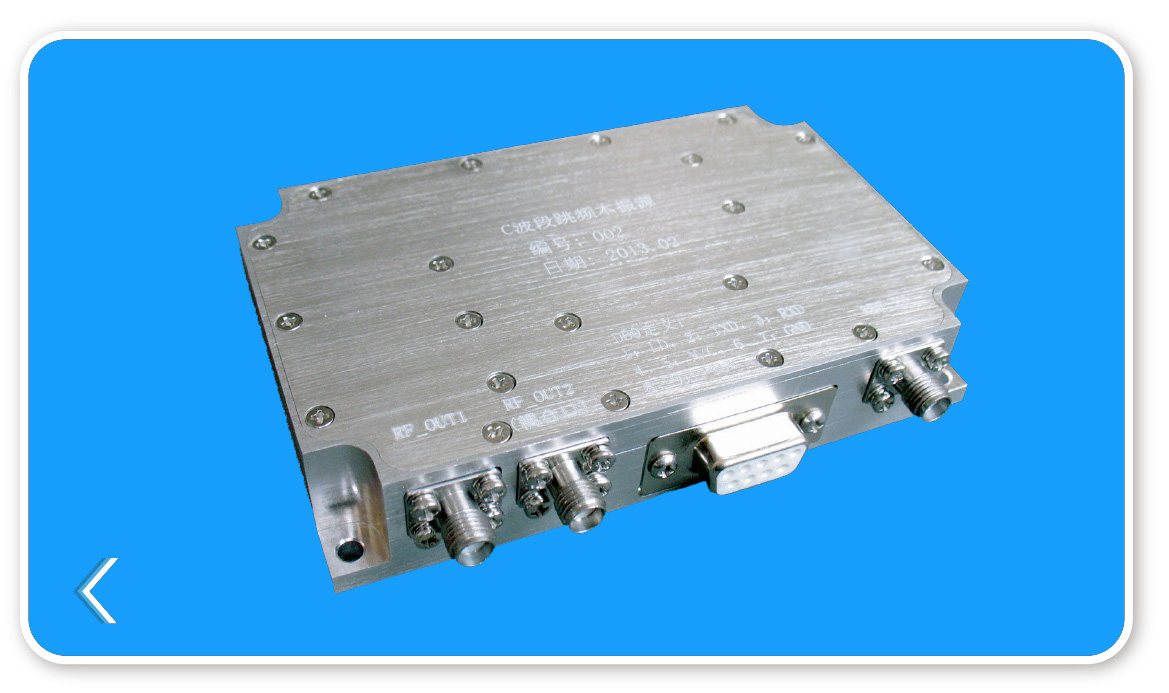

Probecome’s frequency source series products covers VHF~Ku band. The design concepts of frequency source are miniaturization, integration, combination and modular. After long term development, Probecom’s frequency source products series gain advantages of low phase noise, agile frequency and ultra wide-band frequency.

Features:

.High reliability, high stability, high quality

.Low phase noise

.Low spurious

.Structure miniaturization

.Low power consumption

.Wide operating temperature range

(-40℃~+60℃）

Options:

. Frequency step 1KHz, 10KHz, 100KHz, 1MHz optional

.Structure can be customized according to customer requirements

. Control interface, control mode for a variety of options

.Adaptive internal and external reference

Ability Description :

1、Experienced R&D engineer team;

2、Powerful RF design&simulation software and testing facility;

3、Customized L/S/C/X/ku/K/Ka/V/Q/W band SSPA;

4、Ultra wideband products is avaliable;

5、Ultra output power capacity is avaliable;

6、Meets for EMC(Electro Magnetic Compatibility) testing,Satellite communication,Radar system requirements;

7、CW(continous wave) and PW(pulse wave) is avaliable;

8、SSPA,SSPB,HPA, Power amplifier modules is avaliable;

9、Up converter modules is avaliable

Frequency Source Classification

Point frequency source series			Frequency hopping source series				Oscillator series
VCO digital phase locked source			Compact digital phase locked source				Dielectric stabilized oscillator
CRO sampling phase-locked source			Compact digital fast jumping source
DRO sampling phase-locked source			Multi hop fast hopping source of frequency conversion
Analog direct synthesis source			Low phase noise wideband fine stepped signal source
Technical Specification
Point Frequency Source Series Technical Index	Operating Frequency	Phase Noise (dBc/Hz@10KHz)		Output Power (Optional) (dBm)	Spurious suppression (dBc)	harmonic suppression (dBc)		Lock indication
	P(0.2~1Ghz)	-122~-112		0~+15	≥75	≥30		TTL high level
	L(1~2Ghz)	-116~-106		0~+15	≥75	≥30		TTL high level
	S(2~4Ghz)	-110~-100		0~+15	≥75	≥30		TTL high level
	C(4~8Ghz)	-104~-94		0~+15	≥75	≥30		TTL high level
	X(8~12Ghz)	-98~-88		0~+15	≥75	≥30		TTL high level
	Ku(12~18Ghz)	-95~-85		0~+15	≥75	≥30		TTL high level

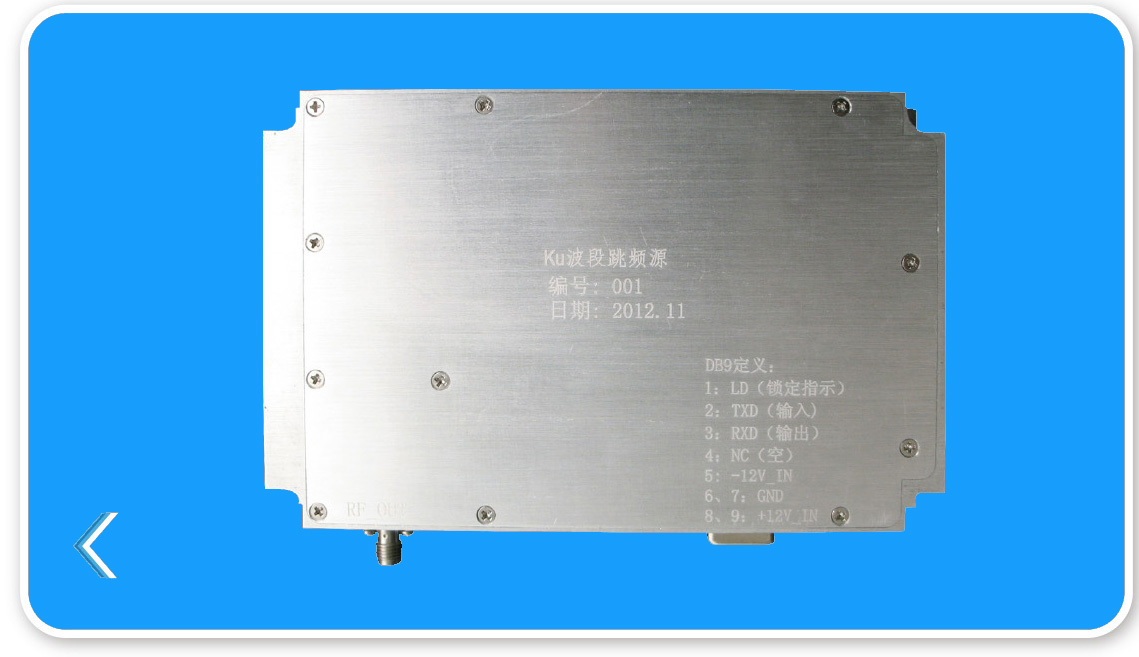

Hop Frequency Source Series Technical Index	Operating band	Relative bandwidth	Phase Noise (dBc/Hz@10KHz)	Output Power (Optional) (dBm)	FH interval	Hopping time	Spurious suppression (dBc)	harmonic suppression (dBc)
	P	≤100%	-115~-105	0~+15	≥75	≥30	50~75	≥30
	L	≤100%	-110~-100	0~+15	≥75	≥30	50~75	≥30
	S	≤100%	-105~-95	0~+15	≥75	≥30	50~75	≥30
	C	≤60%	-100~-90	0~+15	≥75	≥30	50~75	≥30
	X	≤20%	-95~-85	0~+15	≥75	≥30	50~75	≥30
